13/12/2021 iti drawing 1st Year Answer key : – जैसा कि आप लोग जानते हैं कि आपकी परीक्षाएं नजदीक हैं और आप की परीक्षाएं ऑनलाइन होनी है जिसमें आपको iti drawing भी पढ़ना होगा क्योंकि यह सब्जेक्ट भी उतना ही महत्वपूर्ण है जितना बाकी और सब्जेक्ट इसीलिए आज मैं आपके लिए iti E.D paper का MCQ Question लेकर आया हूं जिसमें से आपको 25 सवाल मिलेंगे आज है जो आपकी परीक्षा के लिए महत्वपूर्ण है ऐसे ही सवाल आपको अपने एग्जाम में देखने को मिल जाएंगे धीरे-धीरे करके और mcq टेस्ट भी आपको यहां itiquestionbank.com पर देखने को मिल जाएंगे ITI 1st Year ED Question paper 2021.

21/B/C/A-I/I/E

PAPER-IV

ENGINEERING DRAWING (I” YEAR)

ANNUAL EXAMINATION COMMON FOR ONE / TWO YEAR TRADES

Time : 3 HRS

MARKS : 50

Nptes: Attempt all questions

1 – Draw the hand drawing of: –

a) Scriber

13/12/2021 iti drawing 1st Year Answer key

b) Center punch 60

13/12/2021 iti drawing 1st Year Answer key

2- Draw an Ellipse by four center method Major axis 80 mm, minor axis 40 mm.

13/12/2021 iti drawing 1st Year Answer key

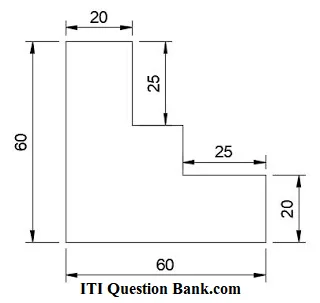

3- Draw the given cover plate and place the dimensions in the Aligned system.

13/12/2021 iti drawing 1st Year Answer key
13/12/2021 iti drawing 1st Year Answer key
Aligned system

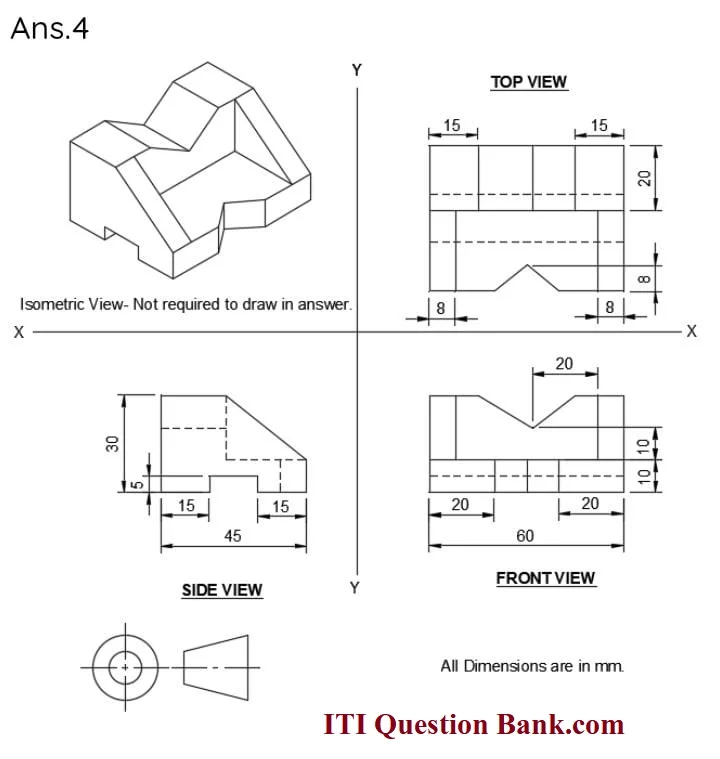

4- Draw front view, side view and top viewin 3rd angle projection of the given object.

13/12/2021 iti drawing 1st Year Answer key

Answer –

13/12/2021 iti drawing 1st Year Answer key

13/12/2021 iti drawing 1st Year Answer key
